User Inteface

With this namespace, you can quickly provide methods to show UI.

The namespace User Interface provides to developers, methods to easily show or validate data.

//accessing to ui methods
SW.UI.{methodName}

editComponentsOptionInBulk

Description

This method can be used to edit an option in various components.

Method(s)

1    function editComponentsOptionInBulk(components: any[], option: string, value: any): void
ParameterTypeRequiredDefaultsDescription
componentsany[]trueComponents array to edit option
optionstringtrueOption to edit
valueanytrueNew option value

Basic Usage

SW.UI.editComponentsOptionInBulk([dataGrid, chart], 'dataSource', data);

Response

It will set dataGrid and chart dataSources with the variable data passed.


getEntityImage

Description

This method can be used to get entities image.

Method(s)

1    function getEntityImage(element: HTMLElement, documentName: string,
2 params?: {
3 size?: Size;
hideName?: boolean;
title?: string;
4 } = {
5 size: Size.SMALL,
hideName: false,
title: null
6 }
7 ): string;
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
documentNamestringtrueType of document
sizeSizefalse"small"Image's size to be displayed(small, medium, large)
hideNamebooleanfalsefalseShow or hide the name of the field
TitlestringfalsefalseThe name displayed in the UI

Basic Usage

SW.UI.getEntityImage(element, 'job', { size: 'large' });

Response

Returns the passed HTML element with the entity job image.


setAttribute

Description

This method can be used to set element's attributes.

Method(s)

1    function setAttribute(element: HTMLElement, attribute: string, attributeValue: string,
2 params: {
3 text?: string;
4 createContainer?: boolean
5 } = {
6 createContainer: true
7 }
8 ): HTMLElement
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
attributestringtrueAttribute to update
attributeValuestringtrueValue to update attribute
textstringfalseInner HTML
createContainerbooleanfalseCreate a new div container

Basic Usage

SW.UI.setAttribute(element, 'style', 'display: contents');

Response

It will add the attribute value to the given attribute.


setConditionalColor

Description

This method can be used to set element's attributes.

Method(s)

1   function setConditionalColor(element: HTMLElement, value: string, conditions: boolean[], colors: string[],
2 params: {
3 createContainer?: boolean;
4 bold?: boolean;
5 italic?: boolean
6 } = {
7 createContainer: true
8 }
9 ): void
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
valuestringtrueValue to show
conditionsboolean[]trueConditions to check
colorsstring[]trueColors for conditions
createContainerbooleanfalsetrueCreate a new div container
boldbooleanfalseBold font
italicbooleanfalseItalic font

Basic Usage

SW.UI.setConditionalColor(element, 'Value', [1>0, 1=0, 1<0], ['Red', 'Green', 'Blue']);

Response

It will add the value text to the element with the background color corresponding to the condition that is true.

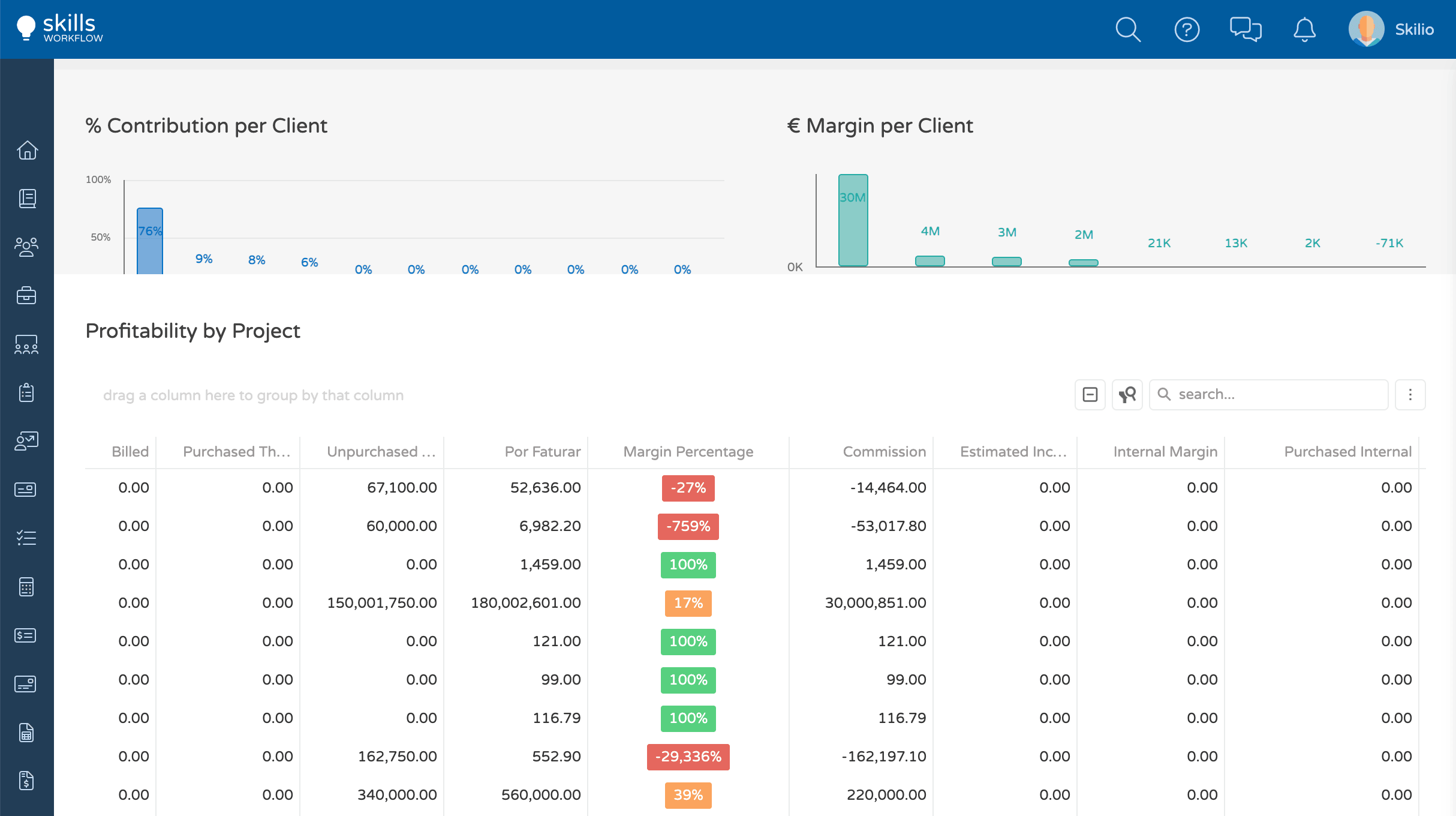

setRag

Description

This method can be used to display a rag.

Method(s)

1   function setRag(element: any, value: string,
2 condition1: boolean,
3 condition2: boolean,
4 condition3: boolean,
5 params: { createContainer?: boolean } = { createContainer: true }
6 ): string;
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
valuestringtrueValue to show
condition1booleantrue
condition2booleantrue
condition3booleantrue
createContainerbooleanfalsetrueCreate a new div container

Basic Usage

SW.UI.setRag(element, "value", true, false, false);

Response

It will add the value text to the element with the background color corresponding to the condition that is true. (case condition1 is true color = "#f7412d", condition2 color = "#ffc720", condition3 color = "#7ec880")


setVersionRag

Description

This method can be used to set rag considering two given versions.

Method(s)

1   function setVersionRag(element: HTMLElement, version1: number, version2: number,
2 params: {
3 createContainer?: boolean
4 } = {
5 createContainer: true
6 }
7 ): void
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
version1numbertrueVersion number
version2numbertrueVersion number
createContainerbooleanfalsetrueCreate a new div container

Basic Usage

SW.UI.setVersionRag(element, 1, 2);

Response


showComponent

Description

This method can be used to create a new component.

Method(s)

1    function showComponent(element: HTMLElement, type: string, properties: object): void;
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML tag
typestringtrueComponent's type
propertiesobjecttrueComponent's properties

Basic Usage

SW.UI.showComponent(element, "List", properties);

Example

In the following example you can find a template for an item that will present a List of items:

function itemTemplate(itemData, itemIndex, itemElement, workspaceContext) {
var properties = {
items: [{"id":1, "value":"Blue"}, {"id":2, "value":"Red"}]
};
SW.UI.showComponent(itemElement, 'List', properties);
}

showImage

Description

This method can be used to display an existing or default Image.

Method(s)

1   function showImage(element: HTMLElement, documentName: "user" | "client" | "company", name: string,
2 params: {
3 hasImage?: boolean;
4 size?: Size;
5 id?: string;
6 showName: boolean
7 } = {
8 hasImage: false,
9 size: Size.SMALL,
10 showName: false
11 }
12 ): HTMLElement
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
documentNamestringtrueDocument type ("user", "client", "company")
namestringtrueDocument name
hasImagebooleanfalseA flag to specify if target already has an image
sizeSizefalseImage size
idstringfalseDocument id
showNamebooleanfalseShow document name

Basic Usage

SW.UI.showImage(element, "company", "Skills Workflow", {hasImage: true, id: "companyId"});

Response


showImageEditor

Description

This method can be used to update a user, client or company image.

Method(s)

1    function showImageEditor(element: HTMLElement, documentName: "user" | "client" | "company", documentId: string,
2 params: {
3 endpoint?: string;
4 size?: Size;
5 width?: number;
6 height?: number;
7 imageStyle?: string;
8 } = {
9 size: Size.LARGE,
10 width: 100,
11 height: 100
12 }
13 ): HTMLElement

ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
documentNamestringtrueImage from document user, client or company
documentIdstringtrueDocument id
endpointstringfalseImage's endpoint
sizeSizefalselargeImage's size to be displayed(small, medium, large)
widthnumberfalse100Container width in pixels
heightnumberfalse100Container height in pixels
imageStylestringfalseSetting height & width in string format

Basic Usage

SW.UI.showImageEditor(element, "company", "companyId");

Response

It will add the document image with an event listener 'change' to change it.


showPriority

Description

This method can be used to define an element priority.

Method(s)

1    function showPriority(element: HTMLElement, priorityValue: number): void;
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
priorityValuenumberfalseDefine element's priority

Basic Usage

SW.UI.showPrioruty(element, 1);

Response


showStage

Description

This method can be used to display a stage.

Method(s)

1   function showStage(element: HTMLElement, name: string, color: string,
2 params: {
3 grouping?: boolean;
4 groupCount?: number
5 } = {}
6 ): void
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
namestringfalseStage name
colorstringfalseElement's color
groupingbooleanfalseA flag to define if target is grouped
groupCountnumberfalseSet the number of elements to group

Basic Usage

SW.UI.showStage(element, "Test", "blue");

Response


showTags

Description

This method can be used to display tags.

Method(s)

1    function showTags(element: HTMLElement, tags: string = null): void;
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
tagsstringfalseTags to show

Basic Usage

SW.UI.showTags(element, "{Label: Skills, Color: #333}");

Response


showTeam

Description

This method can be used to display teams.

Method(s)

1   function showTeam(
2 element: HTMLElement,
3 data: any,
4 idsFieldName: string,
5 namesFieldName: string,
6 hasImageFieldName: string,
7 params: {
8 size?: Size
9 } = {
10 size: Size.SMALL
11 }
12 ): void
ParameterTypeRequiredDefaultsDescription
elementHTMLElementtrueHTML element
dataanytrueA set of data
idsFieldNamestringtrueUsers identifier
namesFieldNamestringtrueUsers name
hasImageFieldNamestringtrueFlag if executers have images
sizeSizefalsesmallImage's size

Basic Usage

SW.UI.showTeam(element, data, "UserIds", "UserNames", "UserHasImages", {size: "large"});

Response

This method will add the user images to the given element..

Example

{
dataField: "ExecutorNames",
caption: "Assignee",
dataType: "string",
allowEditing: false,
visible: true,
cellTemplate: function cellTemplate(e, i) {
if (i.data && i.data.ExecutorNames) {
SW.UI.showTeam(e, i, 'ExecutorIds', 'ExecutorNames', 'ExecutorHasImages', { size: 'small' })
}
}
},

img-box-shadow


showWorkload

Description

This method can be used to display assignments workload.

Method(s)

1    function showWorkload(element: string | HTMLElement, assignmentId: string): Promise<void>
ParameterTypeRequiredDefaultsDescription
elementstring | HTMLElementtrueHTML element or string
assignmentIdstringtrueAssignment id

Basic Usage

SW.UI.showWorkload(element, 'assignmentId');

Response
