Data Extraction API

Overview

The Data Extraction API enables you to export data from Skills Workflow into external tools and systems—such as Excel, Power BI, or custom applications—by dynamically querying named data sets.

Purpose

The Data Extraction API is intended for reading and exporting data from Skills Workflow in a structured and efficient way. It is ideal for reporting, dashboards, and integration with external BI or analytics tools.

Use Cases

Export data from Skills Workflow to:

• Excel, Power BI, Google Sheets
• Custom dashboards or internal reporting systems
• Third-party analytics tools
• Automation tools like Zapier or Make (Integromat)
• Data warehouses or ETL pipelines

Key Limitations

• Read-only: This API does not support creating or updating records.
• Depends on predefined data sets.
• Pagination recommended: Use pagination (skip/take) for large queries to avoid timeouts or incomplete results.
• Rate limits may apply: For high-frequency requests, consider caching or batching.

---

Getting Started

Authentication

Before calling any endpoint, you must obtain the following credentials from our Support team:

• App Key (X-AppId)
• App Secret (X-AppSecret)
• Tenant ID (X-AppTenant)

These are provided by the support team upon request.

Include them in each request via HTTP headers:

X-AppTenant:  <X-AppTenant>
X-AppId:      <X-AppId>
X-AppSecret:  <X-AppSecret>
X-AppUser:    <UserId>     # Optional, if user-scoped filtering is required
Content-Type: application/json

Environments

The API is available in four environments, depending on your subscription plan:

• Development
• Test
• UAT
• Production

Each environment has its own base URL:

{{ApiUrl}}/api/v3/analytics

Postman Collection

To facilitate testing of the available queries, we provide a Postman collection file with all endpoints configured. You can download it from the link below:

Download Postman Collection - Data Extraction

After downloading, make sure to configure the variables {{ApiUrl}}, {{TenantId}}, {{AppId}}, {{AppSecret}}, and {{UserId}} according to the credentials you have been given.

Rate Limits

nota

Each request must complete within 30 seconds.

• Apply filters to narrow the data set.
• Use pagination (skip / take) to retrieve large data sets in chunks.

Filtering Data

To flexibly extract data, use the queryBuilder object in your POST body. It supports:

Property	Type	Description
skip	integer	Number of records to skip (for pagination).
take	integer	Maximum number of records to return.
orderBy	array	List of { field, direction } objects to sort results.
fields	array	List of field names to include in the response.
filters	array	Complex filters combining expressions, e.g. [["Status","=","Open"],"and",["Priority",">",2]].

Filter Operations

The following table lists available filter operations by data type. The Query Builder uses the first operation in each array as the default operation for the specified data type.

Data Type	Filter Operations
string	contains, notcontains, startswith, endswith, =, <>, isblank, isnotblank
numeric	=, <>, <, >, <=, >=, between, isblank, isnotblank
date, datetime	=, <>, <, >, <=, >=, between, isblank, isnotblank
boolean	=, <>, isblank, isnotblank
object	isblank, isnotblank

{
  "queryBuilder": {
    "skip": 0,
    "take": 100,
    "orderBy": [
      { "field": "UserId", "direction": "asc" }
    ],
    "fields": ["Team", "UserId"],
    "filters": [
      ["Team", "=", "Executor"],
      "or",
      ["Team", "=", "Requester"]
    ]
  }
}

---

Discovering Available Fields

To know which fields you can request, perform an initial call with only pagination:

POST {{ApiUrl}}/api/v3/analytics/named-query/DE-Clients/dynamic-execute
Headers:
  X-AppTenant: <TenantId>
  X-AppId:     <AppKey>
  X-AppSecret: <AppSecret>
Body:
{
  "queryBuilder": {
    "skip": 0,
    "take": 100
  }
}

This returns up to 100 records and reveals all available properties in the response schema, which you can then reference in subsequent queryBuilder.fields and queryBuilder.filters.

---

Endpoints

The collection includes several dynamic-execute endpoints, each under:

POST /api/v3/analytics/named-query/{NamedQuery}/dynamic-execute

Where {NamedQuery} is one of:

Named Queries and Available Filters

Below is a list of available Named Queries and their applicable filters (if any).

NamedQuery	Description	Filters	Columns	Details
DE-Bills	Extracts data for bills.	—	54	View
DE-Leaves	#Description
Contains documents with information about vaca…	—	17	View
DE-Assignments	Extracts the teams of users associated with each document.	—	10	View
DE-Attendances	Extracts data on attendances.	—	16	View
DE-Brands	Extracts the list of brands.	—	5	View
DE-BusinessObjectTypes	Extracts business object types.	—	6	View
DE-Cities	Extracts all cities.	—	4	View
DE-Clients	Extracts the list of clients.	—	30	View
DE-ClientsCompanies	Extracts the information about what companies have access t…	—	4	View
DE-Comments	Extracts comments from the feed.	—	13	View
DE-CommentsReplies	Extracts replies of comments.	—	12	View
DE-Companies	Extracts the list of companies.	—	25	View
DE-CompaniesAdditionalInformation	Extracts the custom fields associated with the companies.	—	3	View
DE-Contracts	Extracts contracts information.	—	0	View
DE-Countries	Extracts the list of countries.	—	2	View
DE-Currencies	Extracts the list of currencies.	—	5	View
DE-Departments	Extracts the list of departments.	—	7	View
DE-Descriptions	Extracts the different versions of the descriptions of docu…	—	12	View
DE-Divisions	Extracts the list of divisions.	—	4	View
DE-Employees	Extracts employees.	—	9	View
EstimatedPlannedActualMonthly	System generic extraction of estimated, planned and actual,…	—	45	View
DE-Estimates	Extracts the list of estimates.	—	0	View
DE-EstimatesBillingConditions	—	—	21	View
DE-EstimatesCount	Gets the count of estimates for the given filters.	—	1	View
DE-EstimatesQuotes	Extracts the estimate details.	—	62	View
DE-EstimatesQuotesCount	Counts the occurrences of quotes.	—	1	View
DE-EstimatesQuotesMonthCount	Gets the count of estimate quotes for the given filters.	—	0	View
DE-ExpenseSheets	Extracts expense sheets for integration purposes.	—	22	View
DE-ExpenseType	Extracts expense items types.	—	15	View
DE-Expenses	Extracts expenses for integration purposes.	—	20	View
DE-History	Extract history of documents.	—	17	View
DE-Holidays	Extracts the list of holidays.	—	6	View
DE-Jobs	Extracts the list of jobs.	—	44	View
DE-JobsCount	Gets the count of jobs for the given filters.	—	1	View
DE-LeavesCount	—	—	1	View
DE-LeavesDeleted	Extracts deleted leaves using the parameter ModifiedFrom to…	—	2	View
DE-LeavesDeletedCount	Gets the count of deleted leaves for the filters provided.	—	1	View
DE-Products	Extracts the list of products.	—	7	View
DE-Projects	Extracts a list of projects.	—	53	View
DE-ProjectsClassifications	Extract project classifications.	—	9	View
DE-ProjectsCount	Gets the count of projects for the provided filters.	—	0	View
DE-ProjectsAdditionalInformation	Extracts additional information from projects.	—	4	View
DE-ProjectsPlannedTime	Extract projects.	—	27	View
DE-ProjectsPlannedTimeCount	Gets the count of projects planned time for the provided fi…	—	0	View
DE-ProjectsTypes	Extract projects types.	—	11	View
DE-PurchaseOrders	Extracts purchase orders data from the system.	—	49	View
DE-RateCardsColumns	Extraction of rate cards' columns.	—	20	View
DE-Requests	Extracts requests data.	—	51	View
DE-Services	Extracts the existing services.	—	16	View
DE-ServicesGroups	Extracts the services groups.	—	6	View
DE-Stages	Extracts the list of stages of the workflows.	—	4	View
DE-Suppliers	Extracts suppliers for integration purposes.	—	37	View
DE-Taxes	Extracts information about taxes.	—	9	View
DE-TimeSheets	Extracts the time entered in time sheets.	—	38	View
DE-TimeSheetsCount	Gets the count of time sheets for the filters provided.	—	0	View
DE-TimeSheetsDeleted	Extracts time sheets that have been deleted.	—	2	View
DE-TimeSheetsDeletedCount	Gets the count of deleted time sheet for the provided filte…	—	1	View
DE-Transitions	Extracts the list of existing transitions.	—	27	View
DE-Types	Extracts job types.	—	39	View
DE-Typologies	Extracts the list of typologies of users.	—	15	View
DE-TypologyGroups	Extracts user typology groups of user typologies.	—	4	View
DE-TypologyGroupsCompanies	Extracts typology grous associated to companies	—	5	View
DE-TypologyGroupsDepartments	Extracts typology groups associated to departments.	—	5	View
DE-UserCosts	Extracts cost of users.	—	12	View
DE-UserTypes	Extracts the user types.	—	2	View
DE-Users	Extracts the list of users.	—	30	View
DE-UsersAdditionalInformation	—	—	3	View
DE-WorkTypes	Extracts the work types list.	—	4	View
DE-Workloads	Extracts data from Workloads.	—	13	View
DE-EstimatesQuotesMonth	Extracts all data from estimates.	—	32	View

---

Example Usage

Retrieve Filtered Assignments

POST {{ApiUrl}}/api/v3/analytics/named-query/DE-Assignments/dynamic-execute
Headers:
  X-AppTenant: <TenantId>
  X-AppId:     <AppKey>
  X-AppSecret: <AppSecret>
  X-AppUser:   <UserId>
Body:
{
  "queryBuilder": {
    "skip": 0,
    "take": 50,
    "orderBy": [
      { "field": "User", "direction": "asc" }
    ],
    "fields": ["Team", "UserId", "AssignmentDate"],
    "filters": [
      ["Team", "=", "Executor"],
      "or",
      ["Team", "=", "Requester"]
    ]
  }
}

Sample Response

{
  "data": [
    { "Team": "Executor",  "UserId": "U123", "AssignmentDate": "2025-04-01T09:30:00Z" },
    { "Team": "Requester", "UserId": "U456", "AssignmentDate": "2025-04-02T14:45:00Z" }
    // …
  ],
  "totalCount": 124
}

Scheduled Data Extraction

You can configure Schedules in Skills Workflow to automate recurring data exports.

This method is ideal for generating files (e.g., CSV) that can be directly consumed by external tools such as Power BI, Excel, Tableau, and others.

Overview

Schedules allow you to:

• Define a Query to extract data (same data source as the API).
• Choose an export Format (e.g., .csv).
• Set a Cron Expression to determine when the export should occur.

Once scheduled, the system will run the query at the specified time and generate a downloadable file.

Configuration Example

Here’s a configuration example of a schedule set up to export timesheet data every day at 5:00 AM UTC:

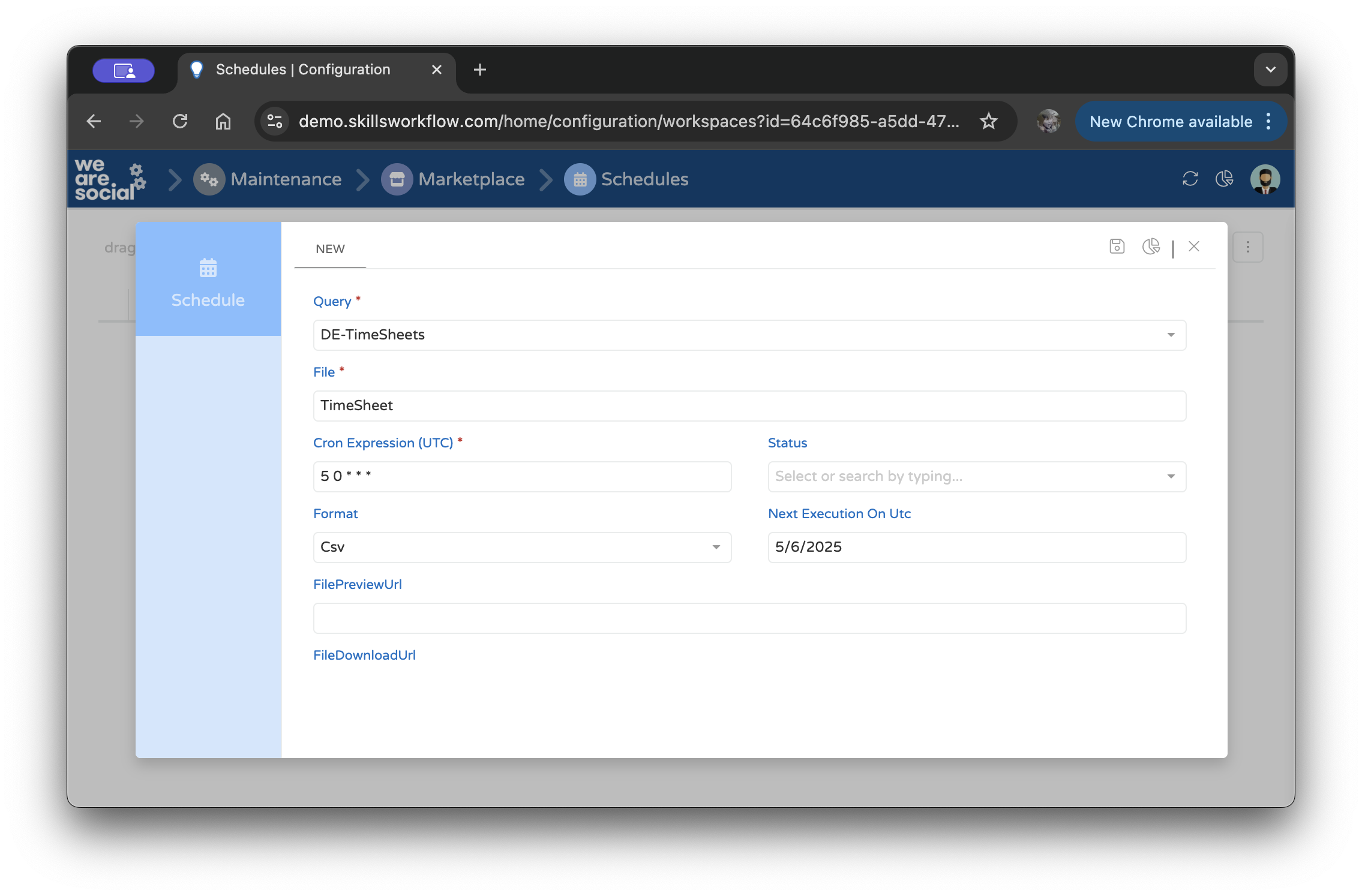

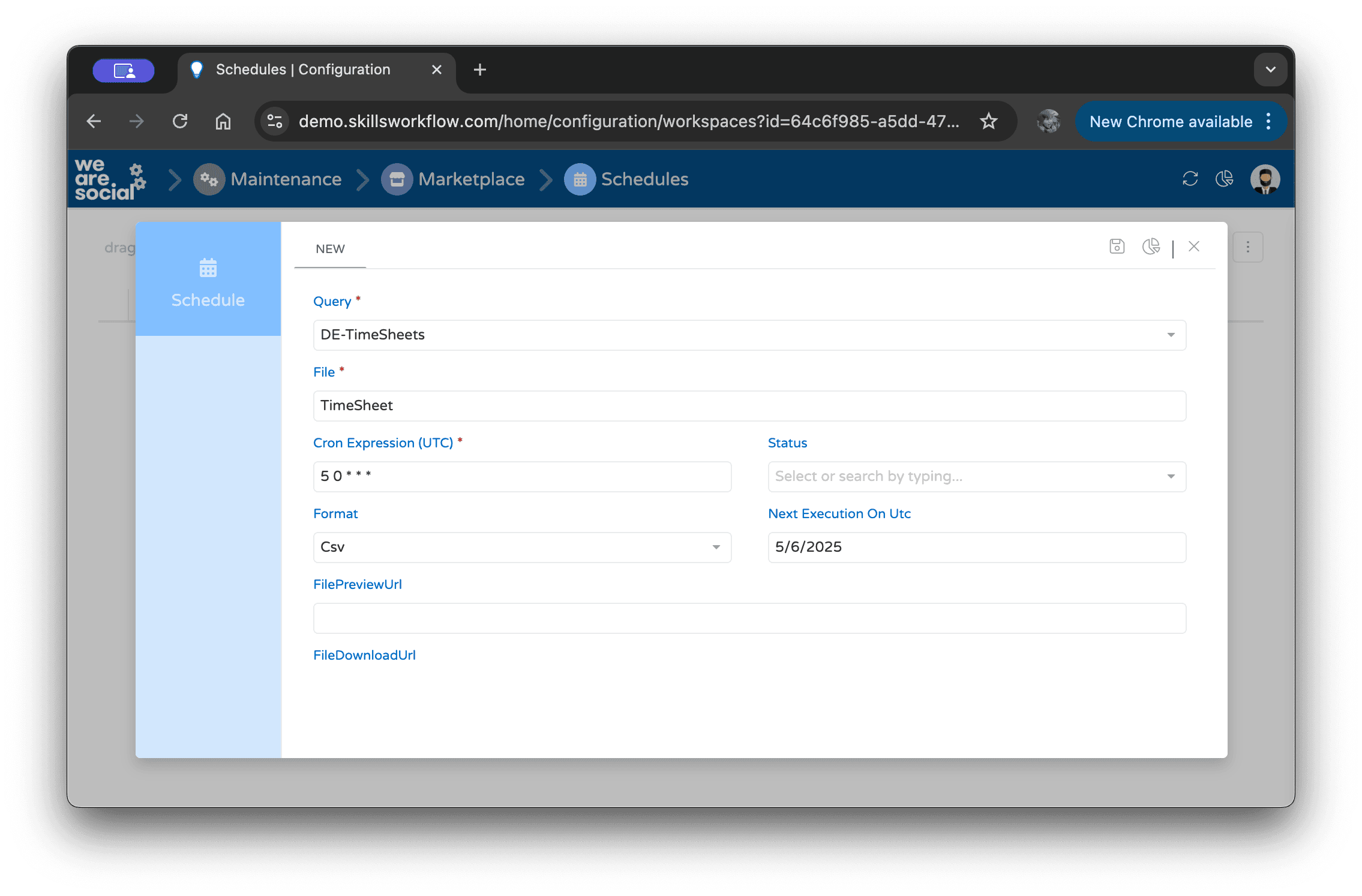

Schedule Configuration Screenshot

The above screenshot shows the “DE-TimeSheets” query being scheduled to export daily.

Cron Expression

The Cron Expression (UTC) field defines when the job should run. For example:

5 0 * * *

This runs the job daily at 5:00 AM UTC.

Best Practice

We recommend running schedules outside working hours to minimize system load and ensure the data is complete.

---

Data Relationships

The diagram below shows the hierarchy between Data Extractions. Use the dropdown to focus on a specific DE and its immediate parent/children, or select "All" to view the full tree. Click any node to inspect its output columns.

Focus on DE:All (full hierarchy)DE-AttendancesDE-BillsDE-BrandsDE-BusinessObjectTypesDE-CitiesDE-ClientsDE-ClientsCompaniesDE-CompaniesDE-CompaniesAdditionalInformationDE-CountriesDE-CurrenciesDE-DepartmentsDE-DivisionsDE-EmployeesDE-EstimatesBillingConditionsDE-EstimatesQuotesDE-EstimatesQuotesCountDE-EstimatesQuotesMonthDE-ExpenseSheetsDE-ExpenseTypeDE-ExpensesDE-HolidaysDE-JobsDE-JobsCountDE-LeavesDE-LeavesCountDE-LeavesDeletedDE-LeavesDeletedCountDE-ProductsDE-ProjectsDE-ProjectsAdditionalInformationDE-ProjectsClassificationsDE-ProjectsPlannedTimeDE-ProjectsTypesDE-PurchaseOrdersDE-RateCardsColumnsDE-RequestsDE-ServicesDE-ServicesGroupsDE-StagesDE-SuppliersDE-TaxesDE-TimeSheetsDE-TimeSheetsDeletedDE-TimeSheetsDeletedCountDE-TypesDE-TypologiesDE-TypologyGroupsDE-TypologyGroupsCompaniesDE-TypologyGroupsDepartmentsDE-UserCostsDE-UserTypesDE-UsersDE-UsersAdditionalInformationDE-WorkTypesDE-Workloads

Press enter or space to select a node. You can then use the arrow keys to move the node around. Press delete to remove it and escape to cancel.

Press enter or space to select an edge. You can then press delete to remove it or escape to cancel.

Click a node to inspect its output columns.
